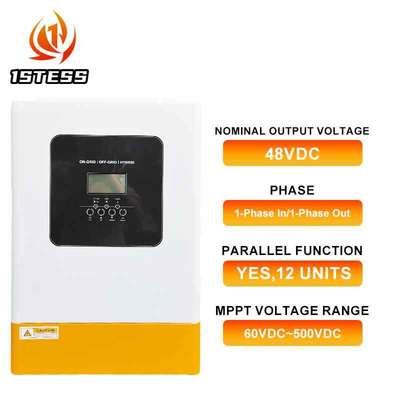

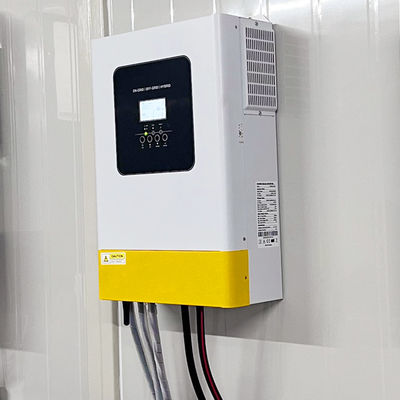

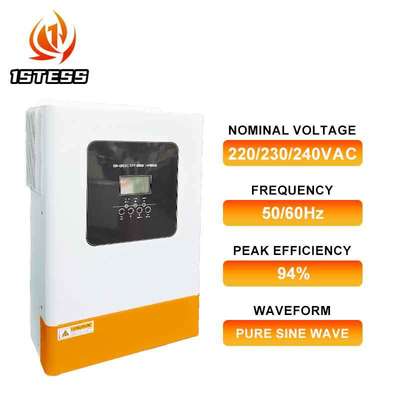

Hybrid Solar Inverter 5.5kW 48V Single Phase Pure Sine Wave Off Grid 5.5KVA 5500W Solar Inverter Parallel 12 Units
| محل منبع | گوانگدونگ ، چین |
|---|---|
| نام تجاری | COENG |
| گواهی | CE, IEC |
| شماره مدل | GM (PV60-500VDC) 6200-48PL |
| سند | GM Series 5.5 - 6.2KW.pdf |
| مقدار حداقل تعداد سفارش | 1 |
| جزئیات بسته بندی | کارتن ، پالت |
| زمان تحویل | 10-30 روز کار |
| شرایط پرداخت | L/C ، T/T ، Western Union |
| قابلیت ارائه | 20000 قطعه در ماه |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| اندازه | 450*300*130mm | ولتاژ باتری | 48 ولت |
|---|---|---|---|
| ولتاژ ورودی | 230vac | OEM | OEM را بپذیرید |
| نوع اینورتر | اینورتر خورشیدی ترکیبی | نوع خروجی | موج سین خالص و خالص |
| وزن ناخالص | 10 کیلوگرم | ||
| برجسته کردن | 5.5kW hybrid solar inverter,48V off grid inverter,pure sine wave solar inverter,48V off grid inverter,pure sine wave solar inverter |
||
توضیحات محصول
| MODEL | GM5500-48PL | GM6200-48PL |
|---|---|---|
| Phase | 1-Phase In/1-Phase Out | 1-Phase In /1-Phase Out |
| Maximum PV input power | 5500W | 6500W |
| Parallel Function | YES,12 Units | YES,12 Units |
| Communication Port | RS232+RS485+ External CT Port | RS232+RS485+ External CT Port |
| Battery Voltage | 48VDC | 48VDC |
| Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC |
| Dimension, D xW x H(mm) | 448*315*122 | 450x300x130 |
Product Features.
- Self-consumption and Feed-in to the grid
- Programmable multiple operation modes: Grid-tie ,off-grid and grid-tie with backup
- Backflow prevention viaexternalCTsensor and grid connection function
- Paralleloperation up to12 unitsin1phaseor 3phase
- Direct Plug WlFl Dongle Supported
- Output power factor 1.0
- High PVinput voltagerange 500Vdc Max
- Built-in MPPTsolar controller100/120A
- WiFiremote monitoring optiona
- Detachable dustcoverforharshenvironment
- User-adjustable charging current and voltage
- Programmable supply priority for PV, Battery or Grid
- Support multiple output priority:SBU/SUB/SUF/ZEC
- EQ function to optimize battery performance and extend lifecycle
