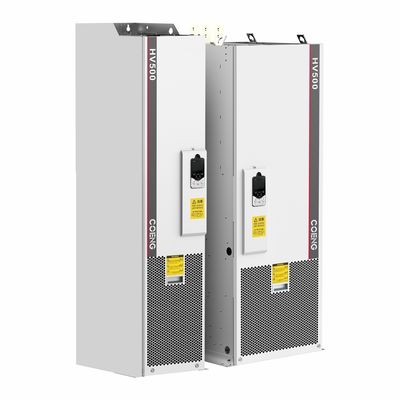

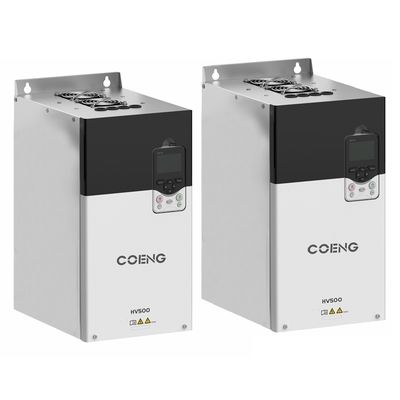

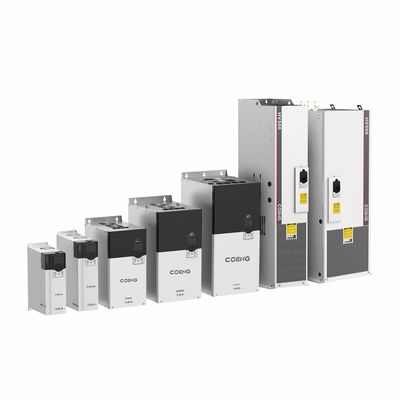

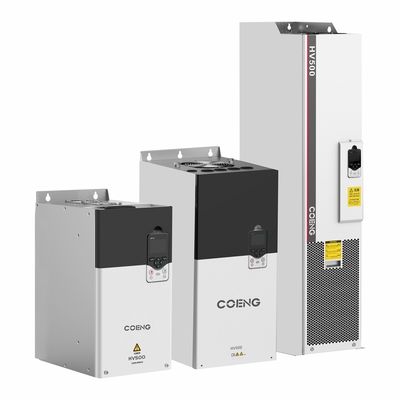

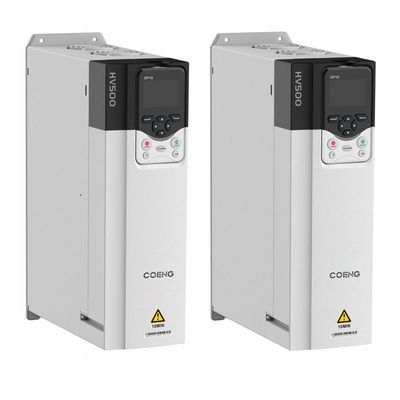

User-Centric VFD with Keypad, UP/DOWN Terminals, and Free Function Blocks for Easy Operation and Setup
| محل منبع | چین |
|---|---|
| نام تجاری | COENG |
| گواهی | EC |
| شماره مدل | HV500 |
| مقدار حداقل تعداد سفارش | 1 |
| جزئیات بسته بندی | کارتن، جعبه تخته سه لا |
| زمان تحویل | 10-30 روز کار |
| شرایط پرداخت | L/C ، T/T ، Western Union |
| قابلیت ارائه | 20000 SETS / سال |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| درجه حفاظت | IP20 | روش خنک کننده | خنک کننده هوا اجباری |
|---|---|---|---|
| کارایی | 5.5kW~22kW: ≥93%; 5.5kW~22kW: ≥93%؛ Above 30kW: ≥95% بالاتر از 30 کیلو وات: | ولتاژ ورودی | 200 ولت (-15%) ~ 240 ولت (+ 10%) 3 فاز , 380 ولت (15-%) ~ 480 ولت (10%) 3 فاز, 500 ولت (15-%) ~ 690 |
| فرکانس ورودی | 50Hz/60Hz±5% | ولتاژ خروجی | 0V~ولتاژ ورودی |
| بسامد خروجی | 0 هرتز ~ 500 هرتز | ||
| برجسته کردن | VFD inverter with keypad,user-centric VFD with terminals,VFD frequency inverter with function blocks,user-centric VFD with terminals,VFD frequency inverter with function blocks |
||
توضیحات محصول
Operation panel
HIC200-OP-10-W is a smart operator panel developed independently for high-performance transmission products, which is informative, friendly and easy to use, and according to the different configurations of the panel, it is divided into two kinds: wiFi function and without WiFi function, which are conveniently applied to high-performance, single transmission, multi-VFDs system, it can monitor and adjust the system.
Accessory
| Optional | Module | Function |
| Keyboard Base | HVKMB | Depending on the situation, the base can be installed in the specified position and the drive can be operated by operating the keyboard |
| Communication Adapter | HVCOM-USB | The drive can achieve high-speed communication with the computer via this option |
| Profibus-DP Expand Card | HVCOM-DP | It is for Profibus-DP bus communication, It can fulfill the monitoring and diagnostics of inverters |
| ABZIncremental Code disk Expansion Card | HVPG-ABZ | Code disk expansion card, incremental code disk for ABZ signal output, power programmable control, compatible single/bipolar output of the code disk |
| CANopen Expansion Card | HVCOM-CAN | It is for CANopen bus commnication, it can fulfill the monitoring and diagnostics of inverters |
| Three-phase voltage detection module | HVVMU | Detection of three-phase voltage, it can be used for permanent magnetic synchronous motor soft start grid, speed tracking and other functions |
Technical Specification
| Technical Specification | ||
| Input/output Power | Input Uin | 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase, 500V (-15%) ~690V (+10%) 3Phase |
| Input Frequency | 50Hz/60Hz±5% | |
| Unbalance Degree of Uin | ≤3% | |
| Output Uout | 0V~Input Uin | |
| Output Frequency | 0Hz~500Hz | |
| Control Performance | Motor Type | Asynchronous / Synchronous |
| Control Method | V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) | |
| Range of Speed Regulation | 1:10 V/F, 1:100 OLVC, 1:1000 CLVC | |
| Start Torque | VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz) | |
| Torque Precision | ≤5%, Vector Control | |
| Torque Pulsation | ≤5%, Vector Control | |
| Speed Regulation Precision | OLVC 0.2%, CLVC 0.01% | |
| Torque Response | ﹤5ms, Vector Control | |
| Dynamic Speed Reduction | OLVC＜0.5%*s, CLVC＜0.3%*s | |
| Acceleration and Deceleration Time | 0.0s~3200.0s, 0.0min~3200.0min | |
| Torque Lifting | 0.0％~30.0％ | |
| Overload | Heavy Load Application 150% 1min/5min, Light Load Application 110% 1min/5min | |
| V/F Curve | Multiple ways: linear V/F curve, 5 kinds of torque reduction characteristic curve mode (2.0 power, 1.8 power, 1.6 power, 1.4 power, 1.2 power), user-defined VF curve | |
| Input Frequency Accuracy | Digital: 0.01Hz, Analog: 0.01Hz | |
| Control Performance | Acceleration and Deceleration Curve | Straight, S Curve |
| Multiple Speed-Steps Operation | 16-Speed Steps Operation through control terminals | |
| Automatic VoltageAdjustment (AVR) | Keeping the output voltage constant automatically when the grid voltage changes within a certain range | |
| Fixed Length | Setted and Fixed Length Control | |
| In-build PID | It Can Easily Constructed Closed loop control system | |
| Enhencement Function | Free Function Block | |
| Input/output Power | Set Frequency | Keyboaed, UP/DOWN Terminals, Multiple Speed-Steps Operation, Terminals Pulsation, Com |
| Analog Input Terminals | AI1: 0V~10V/-10V~10V, AI2: 0V~10V/0(4) mA~20mA | |
| Digital Input Terminals | DI1-DI6, 6 programmable digital input terminals, optocoupler isolation, compatible with drain/source input | |
| Digital Input/Output Terminals | DIO1: Fast pulse output, normal input/output; DIO2: fast pulse input, normal input/output | |
| Anolog Output Terminals | 2 Strings 0V~10V/0 (4) mA~20mA | |
| Relay Output | 2Strings Contact Type FormC | |
| Motor Temperature Detection | Support PT100/PT1000/KTY84 | |
| STO Interface | SIL3/PLe Safe torque shutdown function | |
| Com | Com Protocol | Modbus RTU (Standard), Pro ibus, CANopen, pro inet, Devicenet, Ethercat |
| Environment | Altitude | Without Derating Operation Within 2000m Altitude; 2000m～4000m, Each 100m lifting, Derating 1% (Current) |
| Operation Temperature | -25℃~+40℃ (40℃~55℃ Derating) | |
| Humidity | 15%~95%, Without Condensation | |
| Vibration | 3M3, IEC60721-3-3 | |
| Storage Temperature | -40℃~+70℃ | |
| Operation Place | Indoor, Without direct sunlight, no flammable, corrosive gases, liquids and conductive particles | |
| Accessory | Encoding card, communication expansion card, voltage detection card | |
| Protection Function | Short circuit, over current, overload, over voltage, under voltage, phase loss, over temperature, external fault, etc. | |
| Efficiency | 5.5kW~22kW: ≥93%; Above 30kW: ≥95% | |
| Installation Method | Cabinet | |
| Protection Degree | IP20 | |
| Cooling | Forced Air Cooling | |
Germany
- Q1: Is the HV500 compliant with European efficiency regulations?
A: Yes, it meets EU standards with high efficiency (up to 95%) and low harmonic distortion. - Q2: How precise is the speed control for German precision engineering applications?
A: With CLVC, speed regulation precision is 0.01%, ideal for CNC and automated systems. - Q3: Can the HV500 integrate with Siemens PLCs?
A: Yes, it supports Profinet and Profibus, ensuring compatibility with Siemens and other German automation systems. - Q4: What cooling methods are recommended for high-duty cycles?
A: Forced air cooling ensures optimal performance even in continuous operation common in German manufacturing. - Q5: Does the HV500 support safe torque off (STO) as per IEC standards?
A: Yes, STO is SIL3/PLe certified, meeting strict German safety norms. - Q6: How does it handle grid instability in rural areas?
A: The AVR function maintains output voltage consistency, and it tolerates voltage unbalance up to 3%. - Q7: Is the HV500 suitable for cold storage facilities?
A: Yes, it operates at temperatures as low as -25°C, perfect for logistics and refrigeration. - Q8: What motor types are compatible?
A: It works with asynchronous and synchronous motors, offering flexibility for various applications. - Q9: Can I use the HV500 in multi-motor setups?
A: Yes, with its programmable terminals and communication options, multi-motor control is easy. - Q10: How does the HV500 contribute to energy savings?
A: High efficiency and smart power management reduce operational costs, a key focus in German industry.
