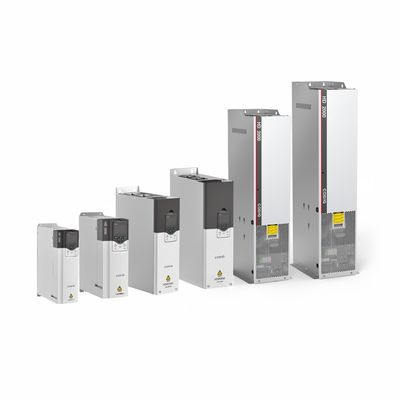

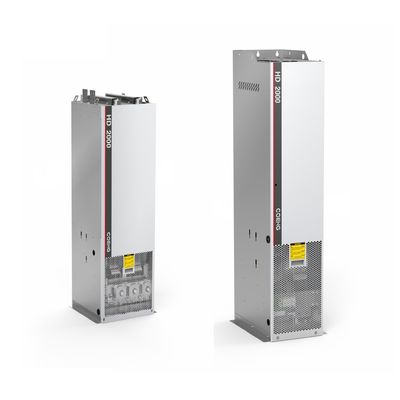

Advanced Protection Functions Protection Functions in HD2000 VFDs: Overheat, Soft-Start, and IGBT Safety
| محل منبع | چین |
|---|---|
| نام تجاری | COENG |
| گواهی | CE |
| شماره مدل | HD2000-C-10-2 |
| مقدار حداقل تعداد سفارش | 1 |
| جزئیات بسته بندی | جعبه چوبی |
| زمان تحویل | 7-30 روز کاری |
| شرایط پرداخت | L/C ، T/T ، Western Union |
| قابلیت ارائه | 20000 SETS / سال |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| تک درایو/چند درایو | سیستم انعطاف پذیر با واحدها/کابینت هایی که دو یا چهار ربع را پشتیبانی می کنند | طراحی مدولار | انعطاف پذیری برنامه و یکپارچه سازی جامع سیستم را فعال می کند |
|---|---|---|---|
| واحدهای یکسو کننده | واحدهای یکسو کننده پایه/هوشمند/PWM برای تبدیل توان همه کاره | Max. حداکثر Single Unit Power برق تک واحدی | 1400 کیلووات (هوا خنک)، 2800 کیلووات (مایع خنک) |
| سطوح ولتاژ | 400 ولت، 690 ولت، 1140 ولت، 1380 ولت | Max. حداکثر Parallel Operation Power قدرت عملیات موازی | 11200 کیلووات (هوا خنک)، 22400 کیلووات (مایع خنک) |
| برجسته کردن | HD2000 VFD with overheat protection,variable frequency drive soft-start function,IGBT safety VFD for HD2000,variable frequency drive soft-start function,IGBT safety VFD for HD2000 |
||
توضیحات محصول

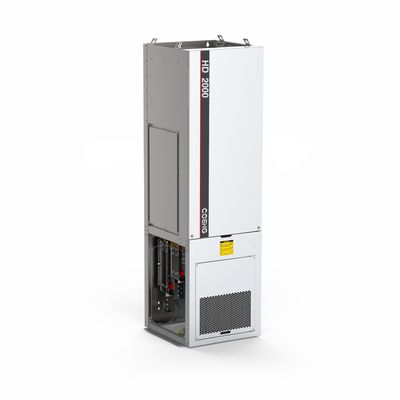

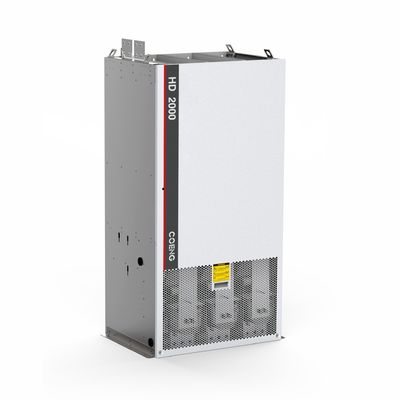

| Model | HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled) | |
|---|---|---|
| Basic Rectifier | Input voltage | 4:380V～480V,6:500V～690V |
| Input frequency | (50Hz/60Hz)±6% | |
| Output voltage | Input voltage * 1.32 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥99% Efficiency | |
| Protection eunctions | Protection functions: Overheating protection, soft-start protection, Interlock | |
| protection, and more. | ||
| Intelligent rectifier | Input voltage | 4:380V ~ 480V,6: 500V ~ 690V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.3 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98.5% Efficiency | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more | |
| PWM rectifier | Input voltage | 4:380V~480V,6:500V~690V,9:1140V,A:1380V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.5 (Under rated conditions) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98% Efficiency (Including LCL filter unit) | |
| Power factor | Adjustable (Factory setting at 1) | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more. | |
| Inversion | Rated Input voltage | 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc, |
| A:1488Vdc~2200Vdc | ||
| Output voltage | 0 ~ Rectifier AC input voltage | |
| Output frequency | 0 ~ 500Hz | |
| Speed range | V/F:1:50 OLVC:1:200 CLVC:1:1000 | |
| Speed stability | OLVC:0.2% CLVC:0.01% | |
| Speed fluctuation | OLVC:0.2% CLVC:0.1% | |
| Starting torque | OLVC:150%(0.5Hz) CLVC:200%(0Hz) | |
| Torque control | V/F: Unsupported OLVC:Supported CLVC: supported | |
| Torque accuracy | OLVC:5% CLVC:5% | |
| Torque response time | OLVC:5ms CLVC:5ms | |
| Speed response time | OLVC:100ms CLVC:100ms | |
| Dynamic speed drop equivalent | OLVC:0.5%*s CLVC:0.3%*s | |
| Environmental conditions | Temperature | -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies |
| Humidity | 5% ~ 95% Mon-condensing | |
| Altitude | ≤4000m, Derating applies from 2000m to 4000m | |
| Mechanical data | Anti-vibration performance | Complies with IEC 60721-3-3:2002 |
| Protection level | IP00 / IP20 / IP40 | |
| Safety level | Complies with UL 508C-2004 | |
| Cooling method | Liquid-cooled | |
Motor Drive VFD Inverter Typical Applicantion
The distinctive selling points corresponding to different countries or regions
11. France
- Energy-Efficient Design: ≥98.5% operating efficiency aligns with France’s focus on renewable energy and efficiency.
- High-Torque Accuracy: 5% torque accuracy ensures precision in France’s luxury automotive and packaging industries.
- Thermal Management: Advanced overheating protection extends lifespan in high-ambient-temperature applications.
- Customizable Power Factor: Allows optimization for France’s specific grid requirements.
- Easy Scalability: From 5.5kW to 3400kW, the product range supports both small workshops and large plants.
12. Italy
- Compact and Aesthetic Design: Sleek cabinet designs (e.g., 600*2200*650mm) blend into Italy’s style-conscious manufacturing facilities.
- High-Speed Response: 100ms speed response time enhances performance in textile and packaging machinery.
- Reliable in Variable Loads: Overload capacity handles Italy’s seasonal production peaks in agriculture and fashion.
- Water-Cooled Efficiency: Liquid-cooled units ensure quiet and efficient operation in noise-sensitive urban areas.
- Local Service Compatibility: Modular units facilitate quick service, reducing downtime in Italy’s dense industrial districts.
13. Canada
- Cold Climate Reliability: Functions seamlessly from -15°C to +40°C, ideal for Canada’s freezing winters.
- High Power for Heavy Industry: Models up to 2800kW support mining, forestry, and oil sands operations.
- Altitude Resilience: Operates up to 4000m, suitable for Canadian Rocky Mountain installations.
- Energy Savings: High efficiency reduces electricity costs in energy-intensive sectors.
- Safety-First Design: Overload and overheating protections ensure operator safety in remote locations.
14. South Korea
- High-Frequency Operation: Up to 500Hz output frequency suits South Korea’s advanced electronics and semiconductor industries.
- Space-Efficient Models: Compact types (5.5–160kW) optimize limited space in high-tech parks.
- Precision Torque Control: Supported in OLVC and CLVC modes, essential for robotics and automation.
- Rapid Installation: Pre-configured units reduce setup time in fast-paced manufacturing environments.
- Humidity and Dust Resistance: IP20/IP40 protection ensures durability in coastal and urban settings.
15. Singapore
- Tropical Climate Adaptation: Handles high humidity (5–95%) and temperatures up to 40°C without derating.
- Compact for Urban Use: Space-saving designs fit Singapore’s high-cost industrial real estate.
- High Efficiency for Cost Savings: ≥99% efficiency reduces operational expenses in Singapore’s energy-conscious market.
- Multi-Drive Flexibility: Supports complex systems for Singapore’s port logistics and precision engineering sectors.
- Global Standard Compliance: Meets IEC and UL standards, ensuring trust in international trade hubs.
